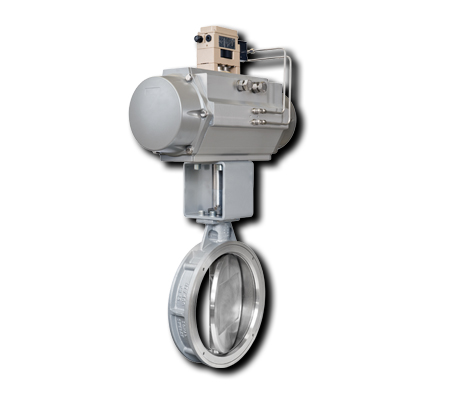

BHP - TE 3 eccentric control & switch butterfly valve


product range

Size: 3 "-100" (DN 80-2500)
Pressure range: ANSI 150-2500 (PN 6-420)
For clamps, ears, double flanges, welded connections
Metal seal or soft seal
Level of leakage: Class VI to ANSI FCI 70-2 / IEC 60534-4
Design standard: ANSI B16.34 and API 609
Main materials: carbon steel, stainless steel, titanium alloy, hannell alloy, inkell alloy, hachak alloy, etc
Low noise anti-cavitation design;
It can be used in emergency cut-off effect (ESD), low temperature or high temperature condition
Anti-collision design, can increase the insulation jacket.

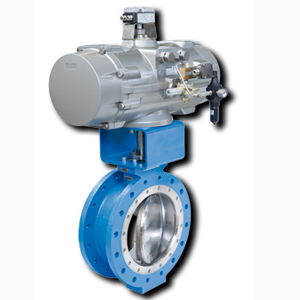

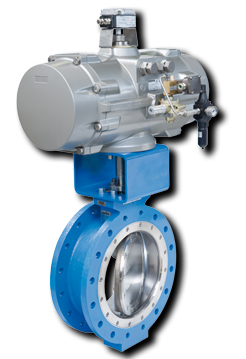

BHP - TD high performance butterfly valve
Product range

Type: to clip V ball
Dimensions: 3 "-48" (DN 80-1200)
Pressure range: ANSI 150-300 (PN 6-50)
For clamps, ears, and double flanges
Metal seal or soft seal
Level of leakage: Class VI to ANSI FCI 70-2 / IEC 60534-4
Seat material: haji alloy, PTFE, 1.4462
Design criteria: DIN, ANSI
