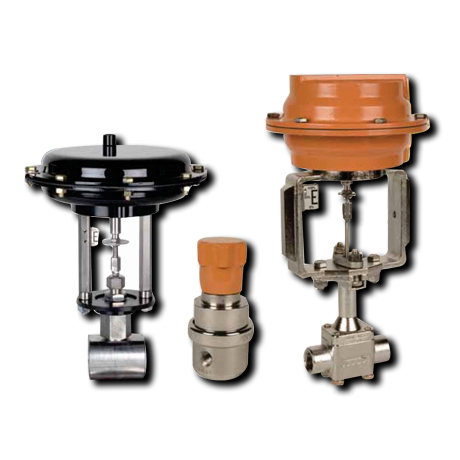

Pneumatic micro-flow control valve is a small diameter regulating valve designed for small flow regulation.
It has the characteristics of small volume, light weight, high performance and precise control for small flow.
When adjusting the dirty medium, we should pay attention to the problem of the small gap between the throttling and prevent the occurrence of the blocking phenomenon.
It is suitable for the flow adjustment of liquid and steam.

features
Flow characteristics: IEC standard and other percentage characteristics EQ %;

Linear characteristic Linear;
►Adjustable ratio: 30:1 (50:1);
►Rated Cv value: 0.0001 ~ 2;
►Level of leakage: ANSI/fci70-2-1991 IV V VI;
►Surface coating: the standard is blue epoxy resin;
►Body stainless steel without coating;
►Form: ANSI DIN RF flange, NPT thread;
►Executive mechanism: film type and electric actuator;

Technical specifications
►Size: DN8 ~ 20 (1/4 "~ 3/4")
►Level of pressure: 150LB ~ 900LB
►Main material: carbon steel, stainless steel, alloy
►Inside material: carbon steel, stainless steel, alloy
