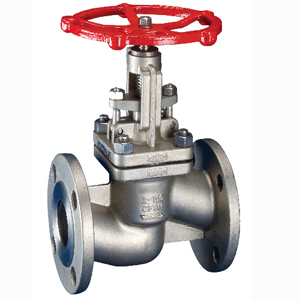

Cast stainless steel globe valve is widely used in fine chemical industry and food factory, the valve wall thickness in strict accordance with ANSI B16.34, lighter weight compared with conventional API 600 valves, specially designed extended bonnet structure can meet the requirements of ultra-low temperature conditions.
Design features
Regulation and throttle function, the convection resistance is not strict, the pressure loss is not considered, high temperature and high pressure gas road
Bolt connection valve cover (OS&Y, B.B.)
Rotary lift stem and handwheel;
The body/bonnet design has good strength, stiffness and flow capacity.
The valve cover is designed to be sealed, and the packing seal is more reliable and easy to replace.
The seat and disc are sealed in a plane or cone.
The threaded drive of stem and stem nut adopts moderate fit clearance and unique tooth type correction, which guarantees the valve actuation flexibility and self-locking of valve shutoff;
The packing is made of graphite material and can provide the packing ring according to the user's request
Product range

Size: 2 "to 14"
Stress level: 150 ~ 2500LB
Main material: CF8, CF8M, CF3, CF3M, 4A, 5A
Design and manufacturing standards: API 603, ASME B16.34
Structure length: ASME B16.10
Test standards: API 598, BS6755, ISO 5208
