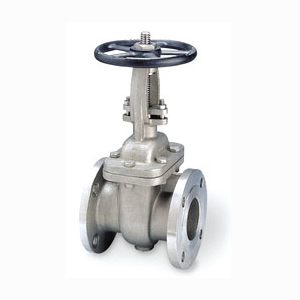

Cast stainless steel gate valve is widely used in fine chemical industry and food factory, the valve wall thickness in strict accordance with ANSI B16.34, lighter weight compared with conventional API 600 valves, specially designed extended bonnet structure can meet the requirements of ultra-low temperature conditions.

Design features
►Precision silicon sol casting
►PTFE gaskets and packing
►An integral seat ring
►Light weight design
►Guide elastic ram
►Bolt connection valve cover for the Ming pole
(OS&Y, B.B.)
►Steel T type stem

Product range
Size: 2 "to 16"
Stress level: 150 ~ 2500LB
Main material: CF8, CF8M, CF3, CF3M, 4A, 5A
Design and manufacturing standards: API 603, ASME B16.34
Structure length: ASME B16.10
Test standards: API 598, BS6755, ISO 5208
